An extension cord is a flexible electrical cable that carries power from a wall outlet to a device whose own cord cannot reach. Extension cords are designed for temporary power, and the correct type depends on the device, environment, distance, and electrical load.

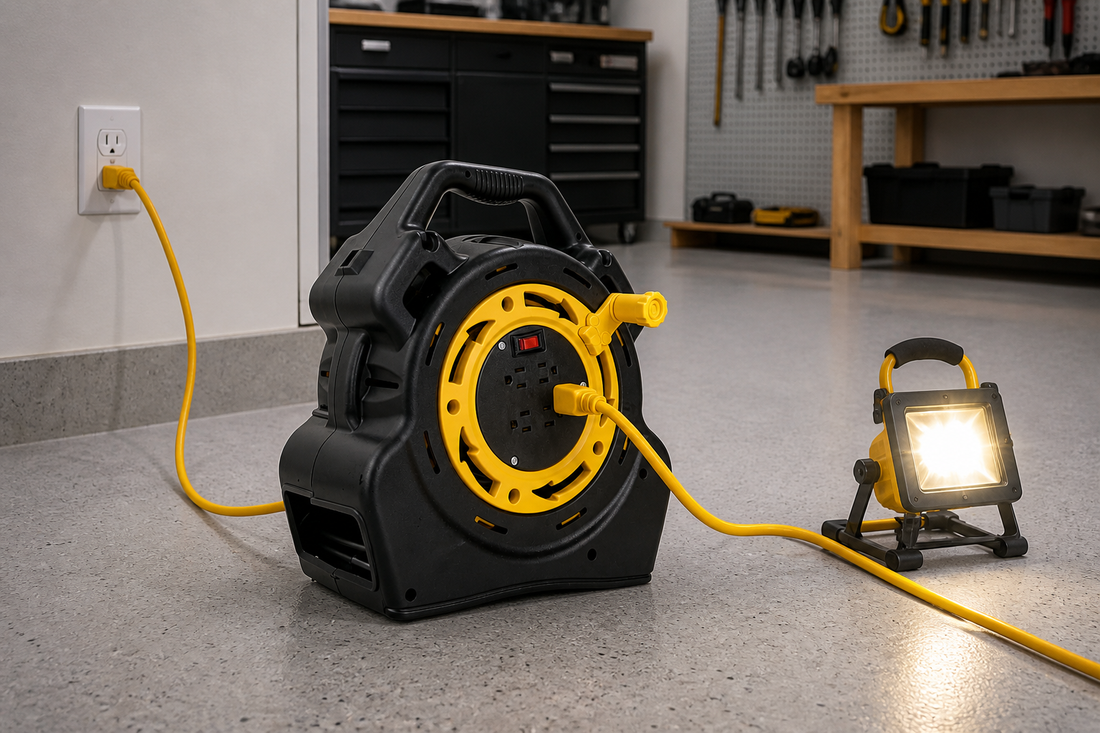

Some extension cords have one outlet. Others use a multi-outlet end or an integrated reel. The LINKVOLT 30 ft Outdoor Extension Cord Reel combines a 30-foot cord, four grounded AC outlets, a portable housing, and a manual storage reel.

How Does an Extension Cord Work?

The plug connects to a wall receptacle, conductors inside the cable carry current, and the outlet end supplies power to the connected device. The extension cord does not create more power. Every connected device still draws from the same branch circuit and must stay within the cord’s rating.

Cord length and conductor size affect resistance and voltage drop. A longer or thinner cord may deliver less voltage at the far end under load, which is why the cord must match the equipment and distance.

Main Parts of an Extension Cord

Plug

The male plug connects to the wall outlet. Grounded extension cords use a three-prong plug for equipment that requires grounding.

Conductors

The internal copper conductors carry current. Their size is commonly described by American Wire Gauge, or AWG. Lower AWG numbers indicate thicker conductors.

Cord Jacket

The outer jacket protects the conductors from normal wear. Indoor and outdoor cords use different jacket constructions, so an indoor-only cord should not be used outdoors.

Outlet End

The outlet end may accept one device or several. Multiple outlets share the cord’s total capacity; they do not multiply it.

Reel and Housing

A cord reel stores the cable on a spool. The LINKVOLT design uses a manual yellow hand crank, a black protective housing, and a top carry handle so the cord can be deployed and stored as one portable unit.

Common Types of Extension Cords

Indoor Extension Cords

Indoor cords are intended for dry spaces and compatible low-power devices such as lamps, chargers, and small electronics. Check the exact product label before use.

Outdoor Extension Cords

Outdoor cords are built for tougher environments, but plug connections still need to stay dry and protected. Outdoor-rated does not mean the cord can be left permanently exposed.

Heavy-Duty Extension Cords

Heavy-duty cords typically use thicker conductors and more robust jackets for demanding temporary applications. The term heavy-duty is not a universal electrical rating, so always verify gauge, length, current, wattage, and the connected device’s manual.

Multi-Outlet Extension Cords

A multi-outlet cord supplies several compatible devices from one cable. Add the loads together and keep the combined total within the cord rating.

Extension Cord Reels

An extension cord reel integrates cable storage with the power connection. It is useful in garages, workshops, yards, sheds, and temporary project areas where a loose cord would be difficult to carry or store.

LINKVOLT 30 ft Outdoor Extension Cord Reel

The LINKVOLT 30 ft Outdoor Extension Cord Reel is a portable manual reel designed to keep temporary power organized. Its product page lists a 30-foot cord, four grounded AC outlets, an on/off switch with a circuit breaker, a carry handle, and ETL, FCC, and DOE compliance.

Where It Fits Best

• Portable work lights and compatible project lighting.
• Garage and workshop tasks within the product and device ratings.
• Temporary yard or patio power in dry operating conditions.
• Projects that benefit from one organized 30-foot cord instead of several short cords.

Important Limitations

• Do not use it as permanent wiring.
• Do not daisy-chain it with another extension cord or power device.
• Do not use it for EV charging, generator connections, or large appliances unless the equipment manufacturer explicitly permits that exact setup.
• Fully unwind the cord before applying a substantial load.
• Follow the rating printed on the reel and inspect it before every use.

What Does Extension Cord Gauge Mean?

Gauge describes conductor thickness. In the AWG system, 12 AWG is thicker than 14 AWG, and 14 AWG is thicker than 16 AWG. Thicker conductors can generally support more demanding loads or longer runs, but the cord’s full label and device instructions determine suitability.

Do not choose a cord based only on gauge. Length, jacket type, voltage, current, outlet design, temperature, and certification also matter.

What Are Extension Cords Used For?

• Temporary lighting where the nearest outlet is out of reach.
• Compatible portable tools and workshop equipment.
• Seasonal decorations used within the cord’s rating.
• Temporary garage, patio, yard, or project setups.
• Low-power household electronics when an appropriate indoor cord is used.

Extension cords should not run through walls, ceilings, doorways, under rugs, or anywhere they can be crushed, overheated, or exposed to water.

How to Choose the Right Extension Cord

1. Check the connected device’s voltage, current, wattage, grounding, and cord requirements.
2. Choose the correct indoor or outdoor rating.
3. Select the shortest length that safely reaches.
4. Choose an appropriate gauge and total load rating.
5. Confirm the outlet count without exceeding the shared total capacity.
6. Look for applicable safety testing or compliance information.
7. Inspect the cable, plug, outlets, and strain relief before every use.

Extension Cord Safety Rules

• Use extension cords only as temporary wiring.
• Keep connections dry and visible.
• Do not connect cords end to end.
• Do not cover a cord with rugs or route it through walls or doorways.
• Unplug the cord before winding or storing it.
• Replace a cord with cracked insulation, exposed conductors, loose outlets, or burn marks.
• Stop use if a plug, cable, or reel becomes unusually warm.

FAQs About Extension Cords

What is another name for an extension cord?

Common terms include extension cable, power extension cord, and extension lead.

What is an extension cord with several outlets called?

It may be called a multi-outlet extension cord, splitter cord, or cord reel with outlets. All outlets still share one total rating.

What is the difference between an extension cord and a power strip?

An extension cord primarily adds reach. A power strip adds outlets and may include surge protection. Some cord reels add both reach and multiple outlets but are still governed by one total load rating.

Can an extension cord reel stay partly wound during use?

Fully unwind the needed cable before a meaningful load. Coiled cable can retain heat.

Can an extension cord be used permanently?

No. If power is needed in a location on an ongoing basis, have a qualified electrician install an appropriate permanent outlet or circuit.

Conclusion

An extension cord provides temporary reach from a wall outlet to compatible equipment. Choosing the correct gauge, length, environment rating, and capacity is essential. For users who need organized 30-foot reach and four grounded outlets, the LINKVOLT Outdoor Extension Cord Reel offers a portable manual-reel format for appropriate temporary power tasks.
